Engineered Tower Structural Members, Lattice Parts & High-Tension Hardware
Supplying power utilities, EPC contractors, and transmission line developers with precision laser-cut gusset plates, cross-arms, cleat angles, and hot-dip galvanized structural assemblies designed for 30+ year field service.
High-voltage power transmission lines operate under extreme mechanical stresses including conductor dead-load, crosswind aerodynamic forces, dynamic ice accumulation, seismic events, and torsional loads. Veer Laser Fab provides comprehensive fabrication of high-tensile structural steel members (IS 2062 Grade E350 / E450), delivering tight hole tolerances (±0.02 mm) and automated punch-slot accuracy that guarantees zero-clash bolting during field tower erection.

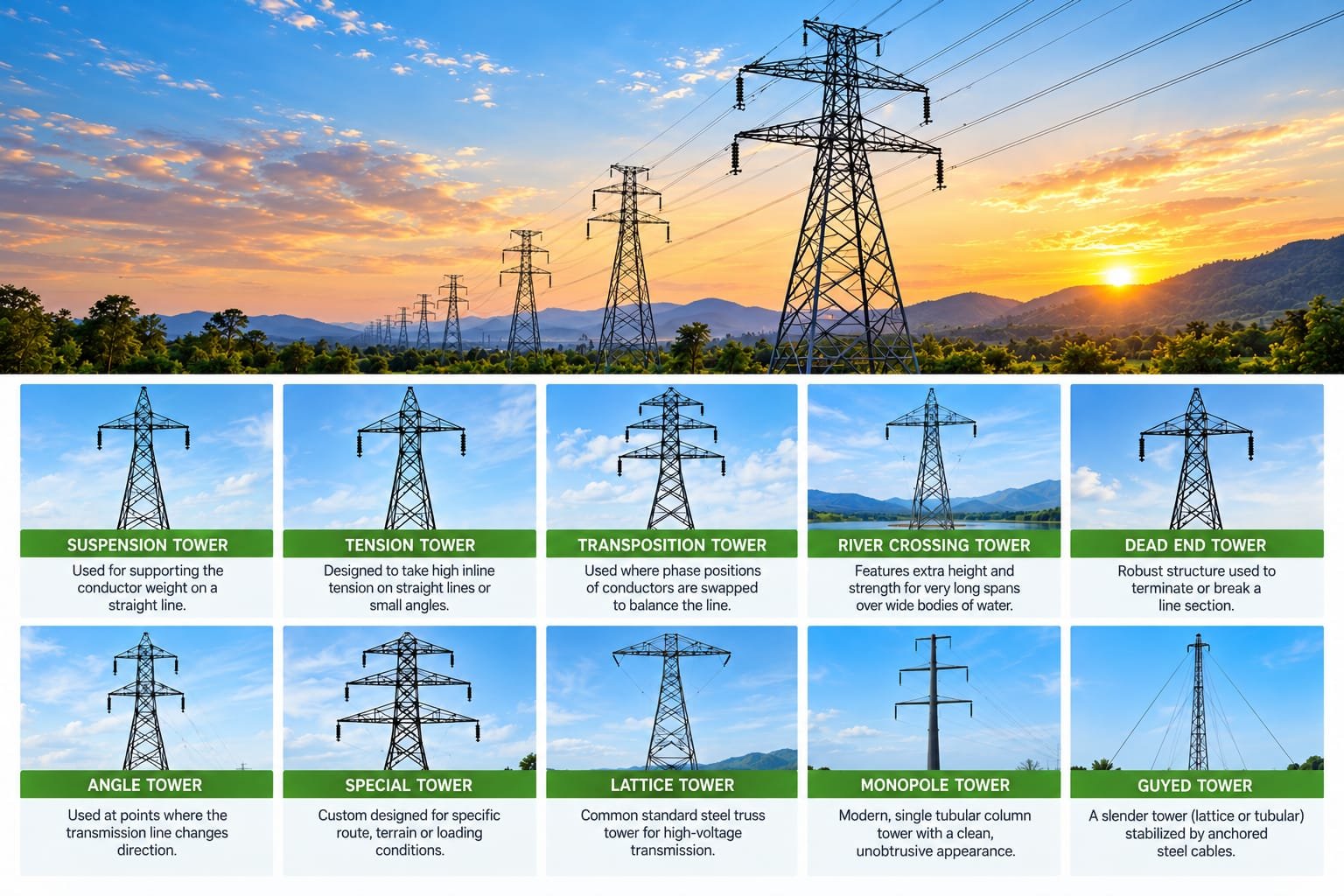

Transmission Tower Structural Types & Classifications
Overview of the key transmission tower configurations fabricated and supplied by Veer Laser Fab.
Engineered for supporting conductor weight along straight transmission corridors with high vertical capacity and flexible insulator hang points.
Reinforced to withstand severe inline longitudinal tension on straight lines or slight angle transitions, balancing conductor pull.
Specialized structural layout where physical phase positions of conductors are systematically swapped to equalize line inductance and capacitance.
Extra-tall, heavy-gauge structural columns built to support exceptionally long spans over wide rivers, lakes, and navigable waterways.
Maximum-strength structural termination anchor designed to bear unilateral tension where line sections end or enter high-voltage sub-stations.
Heavy-duty braced frame positioned at points where the line alters directional alignment, counterbalancing resultant vector tension.
Custom structural designs tailored for non-standard spans, mountainous ridge terrain, heavy snow loads, or environmentally restricted corridors.
Classic four-legged steel truss design utilizing optimized angle sections and diagonal bracing for bulk electrical power transmission across long distances.
Sleek, single polygonal or tubular steel column structure with minimal ground footprint, ideal for space-constrained urban corridors and highways.
Slender structural mast stabilized by high-strength diagonal steel stay wires, providing economical weight efficiency in flat plains and deserts.
All structural components feature complete material test certificate (MTC 3.1) traceability, ultrasonic plate testing, magnetic particle testing on welds, and strict galvanizing thickness verification up to 86+ microns.
Power Transmission Component Scope
Heavy Gusset & Splice Connection Plates
High-precision laser cut structural connection plates from 8mm up to 32mm thickness with tight-tolerance slotted bolt holes for rapid tower erection.
Cross-Arms & Cleat Angles
Fabricated horizontal conductor cross-arms, earth-wire peak brackets, and CNC notched cleat angles engineered for high torsional rigidity.
Sub-Station Gantries & Dead-End Structures
Heavy structural A-frames, equipment support stands, circuit breaker mounting frames, and busbar gantry portals for 66kV to 765kV sub-stations.
Monopole Flanges & Base Assemblies
Precision CNC flame and plasma/laser cut heavy circular base flanges, anchor bolt template rings, and internal stiffening diaphragms.
